Pabrik saiki ngasilake garis produksi HDPE produksi HDPE produksi saka 16mm nganti 1200mm

Our factory is currently producing more than ten HDPE pipe production lines ranging from 16mm to 1200mm, each with 2 sets of 20-110mm, 63-250mm 2sets,  110-315mm 2sets,  315-630mm 2sets,  630-1200mm2sets,  all 3layers extrusion pe pipe machine

1. Capacity: Single screw extruder, suitable for processing high-capacity PE resin

2. Diameter: from 16 to 1200mm

3. The extruder adopts a large L/D and various mixed structures, which are more suitable for low-temperature extrusion production of PE, PP, PPR.

4. Specially designed spiral mold for PE PP PPR pipes with marked lines, equipped with an internal oil temperature control system

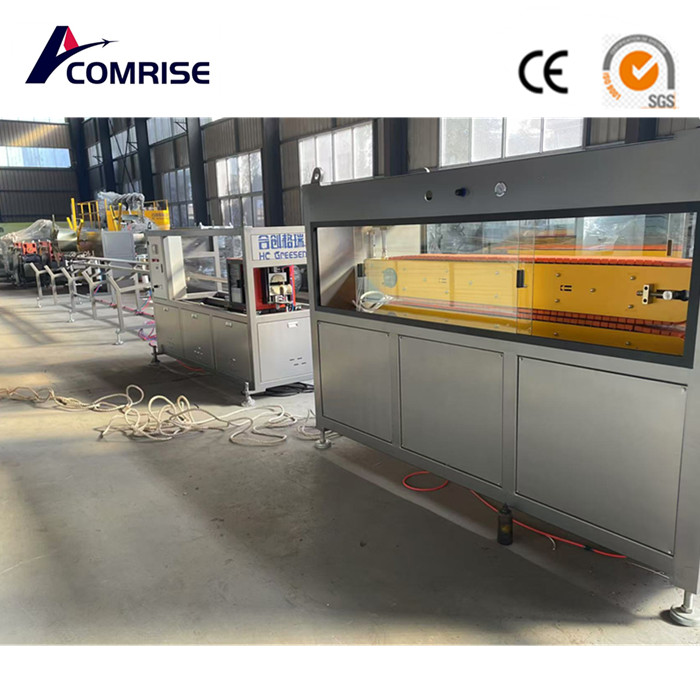

5. The beautiful and practical stainless steel body is a vacuum calibration and spray cooling system. The unique multi section vacuum system ensures the stable sizing and cooling of pipes with marked lines; The special spray cooling system improves the cooling efficiency; The special water position and temperature system make the machine more intelligent.

6. The traction device adopts a special armrest structure, which is easy and convenient to operate; The armrest clamping adopts a mechanical and pneumatic combination system, which is more reliable.

7. The cutting system adopts saw blades and planetary cutting methods; The water collection tank adopts a hydraulic system to ensure a smooth cross-section; Equipped with a dust collection device to ensure a clean working environment.

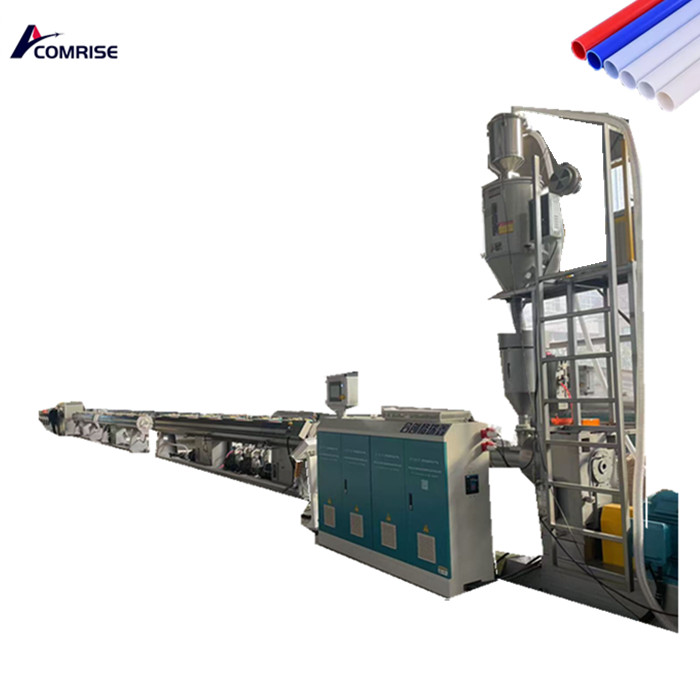

The PE series plastic pipe production line is mainly used for producing water supply and drainage pipes in fields such as agriculture and construction cables. The machine consists of a vacuum calibration tank, a towing unit, a cutting unit, a stacker crane, etc. The single screw extruder and towing device adopt the famous A/C variable frequency speed regulation device, and the vacum pump and driving motor are both from well-known brands. The towing unit includes double claw, three claw, four claw, six claw, eight claw, ten claw, twelve claw, etc. Dustproof cutting machines, saw blade cutting machines, or planetary cutting machines can be used, and the unit performance is reliable. The special device has high production efficiency, and can produce inner wall spiral tubes, inner wall hollow tubes, and core layer foam tubes. It can also produce PP, PE，ABS，PPR，PERT， Silicon core tube, etc. The planetary cutting machine adopts computer automatic control, which has the advantages of simple operation and reliable performance, and has reached the international advanced level.
